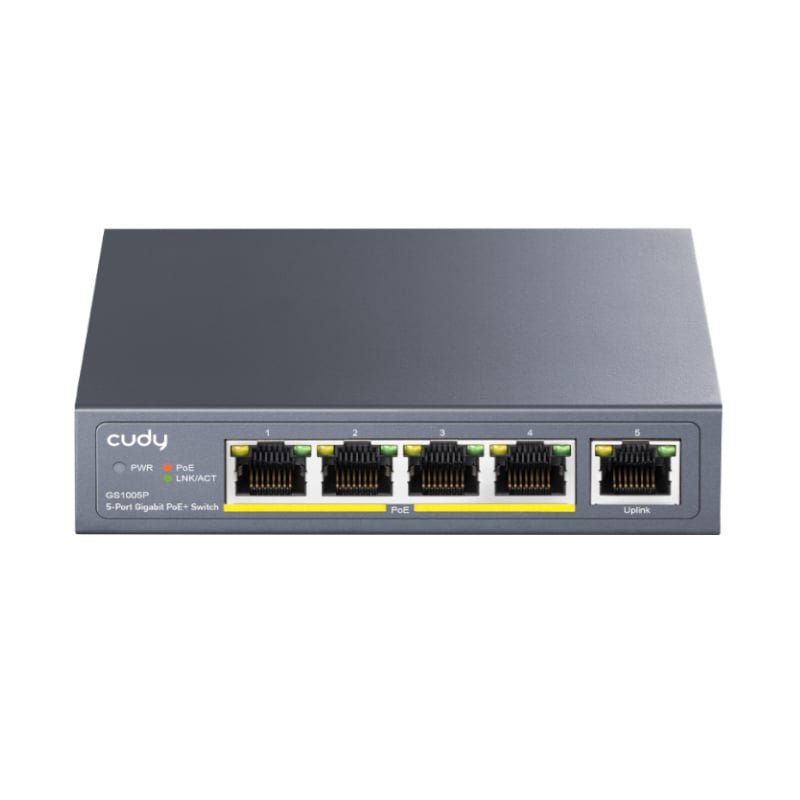

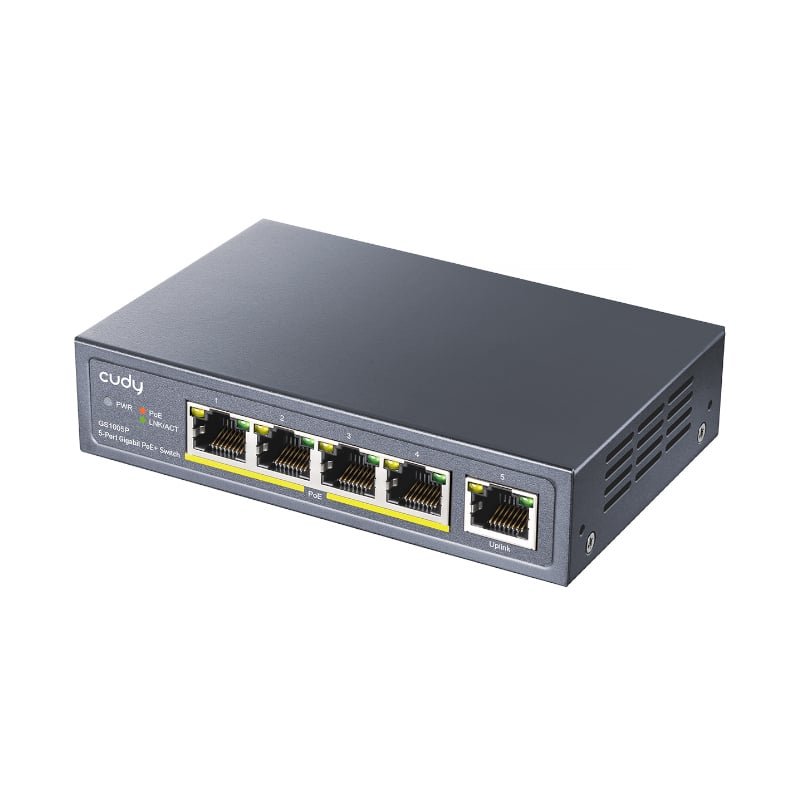

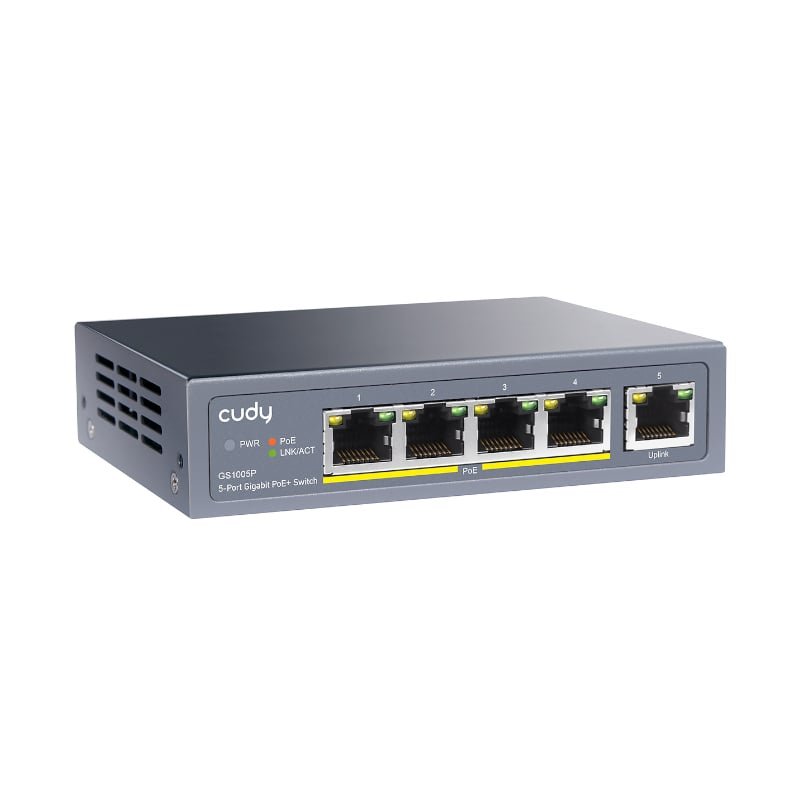

Cudy 5-Port Gigabit PoE+ Unmanaged Switch

The Cudy GS1005P 5-Port Gigabit POE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. For its total, non-blocking throughput, each cudy switch supports up to 5 Gbps with a switching capacity of 10 Gbps.

The 5 port switch supports 60W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal PoE switches. It also complies with IEEE802.3af/at Standard speeds for great performance.

Used for many applications the Cudy GS1005P works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

FEATURES:

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
• Provides 5 10/100/1000Base-TX ports
• 60W PoE power output total
• High back-plane bandwidth 10Gbps
• IEEE802.3x Flow control
• EMI standards complies with FCC, CE class B

SPECIFICATIONS:

• Power:

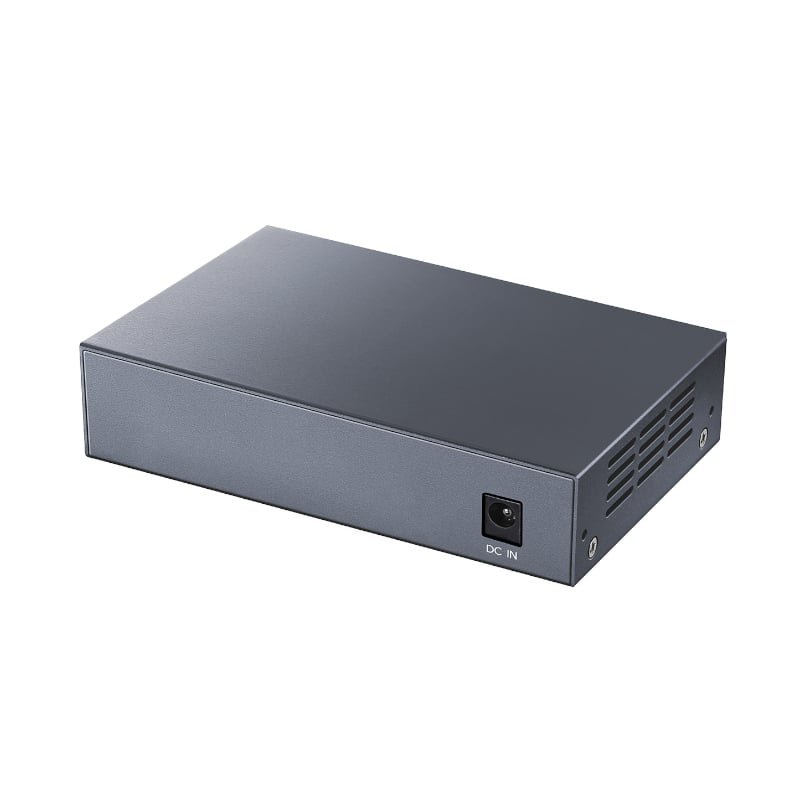

  • Power supply: External Power Adaptor
  • Voltage Range: DC48~57V
  • Switch Consumption: <5W
• Ethernet:
  • Speed:
    • 1~5 Port: 10/100/1000Mbps
    • Uplink: 10/100/1000Mbps
  • Transmission Distance: 100Meter (328ft)
• Network Switch
  • Ethernet Standard: IEEE 802.3/802.3u/802.3ab/802.3af/at
  • Switching capacity: 10G
  • Transfer Rate:
    • 14,880pps for 10Mbps
    • 148,800pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • MAC Address: 2K MAC address table
• LINK/ACT:
  • On - Green: The port is connecting
  • Blinks: The port is receiving or transmitting data
  • Off: The port is not linked successfully with the device
• POE
  • On - Orange: PD is connected
  • OFF: No PD is connected or power forwarding fails
  • Capacity: 60W
  • PoE pin assignment: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
• Colour: Grey
• Product Dimensions: 11.9 x 8.5 x 2.8 cm

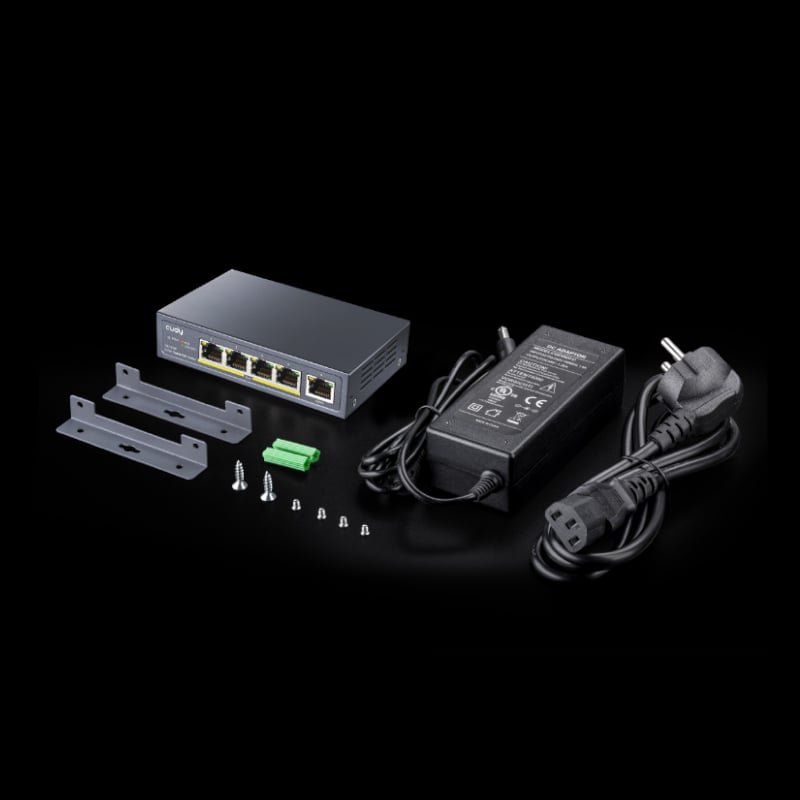

WHAT'S IN THE BOX:

• Cudy GS1005P 5-Port Gigabit POE+ Switch - Grey x1
• Power Adapter x1
• Mounting bracket x2
• Mounting Screws x6

The Cudy FS1010PG 10-Port 10/100M PoE+ Switch allows you to manage your home or office network with ease. It features 8 Ethernet PoE ports and 2 uplink ports. Its RJ-45 connectors support any 10/100Mbps Ethernet devices and its compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1010PG works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to help dissipate heat quickly and ensure stable product operation. The Cudy FS1010PG can also be easily mounted to a wall or onto a rack to make installation more convenient.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

• Support IEEE802.3at and IEEE802.3af Standard
• 120W PoE power output totally, up to 32W for one PoE port
• Support IEEE802.3x full-duplex and half-duplex flow control
• Support VLAN and CCTV Function
• Panel lights to monitor working state and help fault analysis
• Perfect security mechanism
• Line-speed forwarding intelligent identification

SPECIFICATIONS:

• PoE standard: IEEE802.3af/at
• Interface: 10 x 10/100Mbps The RJ45 port through consultation
• Key function: CCTV&VLAN
• PoE port: 1~8 port
• PoE Total: 120W
• Power supply: 120W
• RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6
• PoE output-port: Max 32W
• Indicator: PWR, LNK/ACT, PoE
• Network media:
  • 10BASE-T: UTP category 3, 4, 5 cable(≤100m)
  • 100BASE-TX: UTP category 5, 5e cable(≤100m)；
• MAC Address Table: 8K, Automatic study, automatic updates
• Jumbo frame: 1528Bytes
• Packet buffer: 2M bit
• Transfer Mode: Store-and-forward
• Packet forwarding rate: 1.48Mpps
• Bandwidth: 2M bit
• Fan: Fanless
• Mains Input: 100~240V AC, 50/60Hz
• Green energy saving: Support IEEE（802.3az)
• Surge Protection: ±4KV
• MTBF: >50000 hour
• Electrostatic standard: Contact 4KV, air 6KV
• Colour: Grey
• Product Dimensions: 22 x 15 x 4.4 cm
• Product Weight: 1000g

WHAT'S IN THE BOX:

• Cudy FS1010PG 10-Port 10/100M PoE+ Switch - Grey x1
• Power Adapter x1

The Cudy POE300 60W Gigabit PoE+/PoE Injector allows you to easily supply power and data to a single PoE device. It features a Gigabit Ethernet input port and a Gigabit PoE output port. It's a great option for small surveillance systems or a VOIP phone or a WiFi AP.

The 2 port switch supports 60W total PoE power on the PoE output port. It complies with IEEE802.3af/at Standard speeds for great performance. The Injector is powered by an AC power adapter and can be easily mounted to a wall.

Used for many applications the Cudy POE300 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use.

FEATURES:

• Up to 60 watts PoE power supply
• 1 10/100/1000M Ethernet Input port
• 1 10/100/1000M PoE Output port
• IEEE 802.3at / IEEE 802.3af standard compliant
• Plug&play, simple setup with no configuration needed

SPECIFICATIONS:

• No. of channels: 1
• Pass-Through Data Rates: 10/100/1000Mbps
• Power over Ethernet Output:
  • Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
  • Output Power Voltage: 50Vdc
  • User Port Power: 60W
• Input Power Requirements:
  • AC Input Voltage: 100 to 240 VAC
  • AC Input Current: 0.5A 100-240 VAC
  • AC Frequency: 50 to 60 Hz
• Indicators:
  • System Indicator: AC Power
  • User Indicator: Channel Power
• Connectors: Shielded RJ-45, EIA 568A and 568B
• Regulatory Compliance:
  • IEEE 802.3af (15.4W)
  • IEEE 802.3at (30W)
  • IEEE802.3at 4Pairs(60W)
• Product Dimensions: 14.5 x 6 x 4 cm

WHAT'S IN THE BOX :

• Cudy POE300 60W Gigabit PoE+/PoE Injector - Black x1
• Power Adapter x1

The Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot allows you to manage your home or office network with ease. It features 24 Ethernet PoE ports with 2 uplink ports and 1 SFP slot. It's PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it's compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1026PS1 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

• 24 x 10/100M PoE+ ports
• 2 x Gigabit Uplink port
• 1 x 1.25Gbps SFP slot
• 300 Watts PoE power budget
• IEEE 802.3at / IEEE 802.3af standard compliant
• Plug&play, simple setup with no configuration needed

SPECIFICATIONS:

• Connector Type: 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
• Network Protocols:
  • IEEE802.3
  • IEEE802.3u
  • IEEE802.3ab
  • IEEE802.3x
  • IEEE802.3z
• PoE Parameters:
  • PoE Standard: IEEE802.3af /IEEE802.3at
  • Max each port: 15.4W ( IEEE 802.3af )
  • Max each port：30W ( IEEE 802.3at )
  • PoE compatibility: IEEE 802.3af/at adaptive
  • PoE port output: DC48-55V
  • Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
• Network Media:
  • 10BASE-T: Cat 6 UTP(≤250 meters)
  • 100BASE-TX: Cat5 or more UTP (≤100 meters)
  • 1000BASE-TX: Cat5 or more UTP (≤100 meters)
• Optical:
  • Multi-Mode Fiber: 850nm, 1310nm
  • Transmission Distance: 550m/2Km
  • Single-Mode Fiber: 1310nm, 1550nm
  • Transmission Distance: 20/40/60/80/100/120km
• Performance Specification
  • Bandwidth: 10.8Gbps
  • MAC Address: 2K
  • Packet Buffer Memory: 1M
  • Packet Forwarding Rate: 8Mpps
  • Forwarding Mode: Store-And-Forward
• Power Supply
  • Product Input Voltage: AC100-240V 50/60Hz
  • Output: 52V5.76A, Power Budget: 300W
• Led indicator:
  • PWR - Power supply indicator(Red):
    • Lighting: Powered
    • Un-Light: No Power
  • SW - DIP indicator(Green):
    • OFF: Normal
    • Vlan: Lighting
    • Extend: Slow flash
  • 1-27 - RJ-45 ACT indicator(Green):
    • Lighting: Connecting
    • Flashing: Data Transmit
    • Un-Light: Disconnect
• MTBF: 100,000 hours
• Product Dimensions: 32 x 21 x 4.6 cm
• Product Weight: 1900g

WHAT'S IN THE BOX:

• Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot - Grey x1
• Power Adapter x1

The Cudy POE220 30W Gigabit 2 Channel PoE+/PoE Injector allows you to easily supply power and data to multiple PoE devices. It features 2 Gigabit Ethernet input ports for data and 2 Gigabit PoE output ports. It’s a great option for small surveillance systems or a VOIP phone or a WiFi AP. The Cudy POE220 eliminates the need for an external power supply. This allows you to get rid of its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over your existing Ethernet infrastructure.

The 4 port switch supports 30W total PoE power on the PoE output ports. It complies with IEEE802.3af/at Standard speeds for great performance. The Injector is powered by an AC power adapter and can be easily mounted to a wall.

Used for many applications the Cudy POE220 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use.

FEATURES:

• Full IEEE 802.3af IEEE 802.3at Compliant
• Up to 30W of power output on 2-pairs for per port
• Auto-detect of POE IEEE 802.3af IEEE 802.3at equipment
• Supports 10/100/1000Base-T applications
• LED indicators AC power input and POE output
• Distance up to 100 meters
• Internal AC/DC converter – no need for an external power brick
• Easy plug-and-play installation
• Surge protection

SPECIFICATIONS:

• No. of channels: 2
• Pass-through Data Rates: 10/100/1000Mbps
• Power over Ethernet Output:
  • Pin Assignment and Polarity:
    • 1/2 (-), 3/6 (+),
    • Output Power Voltage: 54Vdc
    • User Port Power: Up to 30W per port
• Input Power Requirements:
  • AC Input Voltage: 100 to 240 Vac
  • AC Input Current: 0.8A 100-240 Vac
  • AC Frequency: 50 to 60 Hz
• Indicators:
  • System Indicator: AC Power
  • User Indicator: Channel Power
• Connectors: Shielded RJ-45, EIA 568A and 568B
• Regulatory Compliance:
  • IEEE 802.3af (15.4W)
  • IEEE 802.3at (30W)
• Product Dimensions: 13.1 x 7 x 4 cm
• Product Weight: 420g

WHAT'S IN THE BOX:

• Cudy POE220 30W Gigabit 2 Channel PoE+/PoE Injector - Black x1
• Power Adapter x1

The Cudy FS1006PL 6-Port 10/100M PoE+ Switch allows you to manage your home network with ease. It features 5 Ethernet ports and 1 uplink port. Its RJ-45 connectors support any 10/100Mbps Ethernet devices.

For additional protection, it features a VLAN mode which helps isolate the ports from each other. It supports various Ethernet standards, such as IEEE 802.3/802.3u/802.3af/802.3at for increased bandwidth to alleviate network congestion, making the switch work reliably.

Used for many applications the Cudy FS1006PL works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a CCTV mode for longer distances up to 250 meters.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

FEATURES:

• 60 watts PoE power supply, up to 30 watts per port
• 4 10/100M PoE ports + 2 10/100M uplink ports
• CCTV mode support remote PoE feeding up to 250m
• LED for easy monitoring LNK/ACT/PoE status
• IEEE 802.3at / IEEE 802.3af standard compliant
• Plug & play, simple setup with no configuration needed
• Ideal for installations of 4 PoE/PoE+ devices

SPECIFICATIONS:

• Power:
  • Power supply: External Power Adaptor
  • Voltage Range: DC48~57V
  • Switch Consumption: <5W
• Ethernet
• Speed: 1~5 Port : 10/100Mbps, Uplink:100Mbps
• Transmission Distance:
  • 1-4port 100Meters with 100Mpbs
  • 200Meters with 10Mbps
  • Uplink: 100Meter with 100Mpbs
• Network Switch
• Ethernet Standard: IEEE 802.3/802.3u/802.3af/802.3at
• Switching capacity: 1.2G
• Transfer Rate
  • 14,880pps for 10Mbps
  • 14,8800pps for 100Mbps
• MAC Address: 1K MAC address table
• Function On: The VLAN and 200 meters is starting to work
• Link/ACT:
  • On - Green: The port is connecting
  • Blinks: The port is receiving or transmitting data
  • Off: The port is not linked successfully with the device
• POE:
  • On - Orange: PD is connected
  • Off: No PD is connected or power forwarding fails
  • Capacity: 55W
• Bandwidth
• PoE pin assignment: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
• Colour: Grey
• Product Dimensions: 10.2 x 7.5 x 2.2 cm

WHAT'S IN THE BOX:

• Cudy FS1006PL 6-Port 10/100M PoE+ Switch - Grey x1
• Power Adapter x1
